Wall
ACU OSR 182039-22K32-110/
1x1W/
2200K

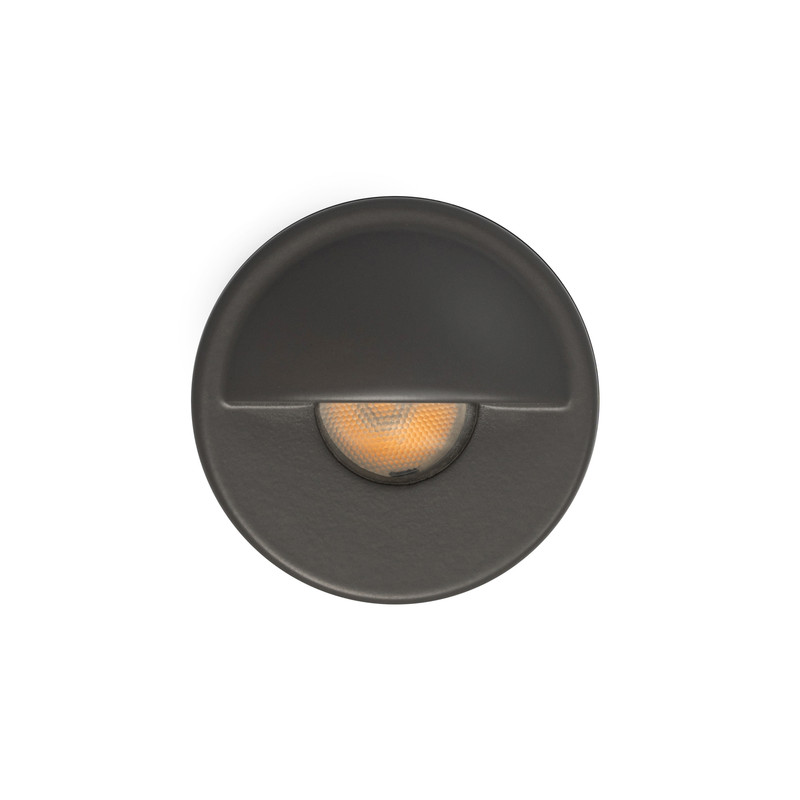

Recessed Stair Light, LED 1x1W, 32 Beam Angle, 2200K, 24V DC, 1-10V Dimming , IP65
Datasheet
| Source type | LED COB |
|---|---|
| Wattage | 1x1 W |
| CCT | 2200 K |
| Beam Angle | 32 ° |
| Lumen Output | 23 |
| CRI | ≥90 |
| IP Rate | 65 |
| IK Rate | IK10 |
| Rated life - Hours | 30000-50000H |
| Cutting section | N/A |
| Finish Color | Die Casting Powder Coated Aluminum - Grey |
| Materials | Die Casting Powder Coated Aluminum |
| Installation | Recessed |
| Notes | 24V (1-10V Dimming) |
| Driver Type | External Driver |
| Input Voltage | 24V DC |
5 Years Warranty
Your product has a warranty that protects against defects in the material and the finishing of the product in accordance with its maintenance and usage instruction.
Damage caused by misuse
Damages cause by misuse or abusive use, negligence, accidents, commercial use and/or changes to the product made by the end consumer is explicitly excluded from this warranty.
Dimension Diagram
