Spark
ACU 231002-3K20-WB/
1x7W/
3000K

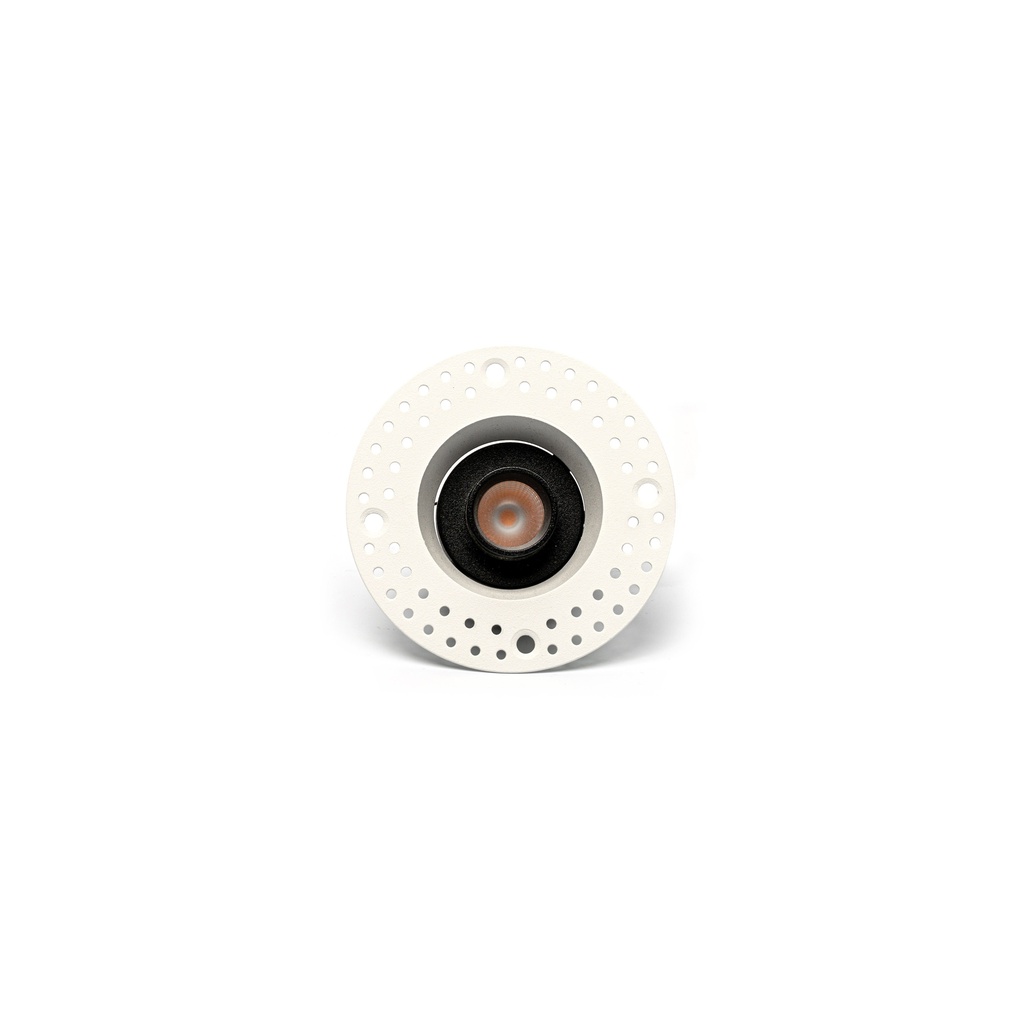

Trim less Recessed Adjustable Light, LED 1x7W, 3000K, 20° Beam Angle, 399lm, IP20, White-Black
Datasheet
| Source type | LED COB |
|---|---|
| Wattage | 1x7 W |
| CCT | 3000 K |
| Beam Angle | 20 ° |
| Lumen Output | 358 |
| CRI | ≥90 |
| IP Rate | 20 |
| Rated life - Hours | 30000-50000H |
| Cutting section | Cut out: Φ65mm |
| Finish Color | White-Black |
| Materials | Powder Coated Aluminum |
| Installation | Trim-Less Recessed |
| Notes | Adjustable Light / Round Shape Trim-Less Frame |
| Driver Type | External Driver |
| Input Voltage | 220V AC (Via the External Attached Driver) |
Application Photo
Dimension Diagram
5 Years Warranty
Your product has a warranty that protects against defects in the material and the finishing of the product in accordance with its maintenance and usage instruction.
Damage caused by misuse
Damages cause by misuse or abusive use, negligence, accidents, commercial use and/or changes to the product made by the end consumer is explicitly excluded from this warranty.
Application Photo
Dimension Diagram
