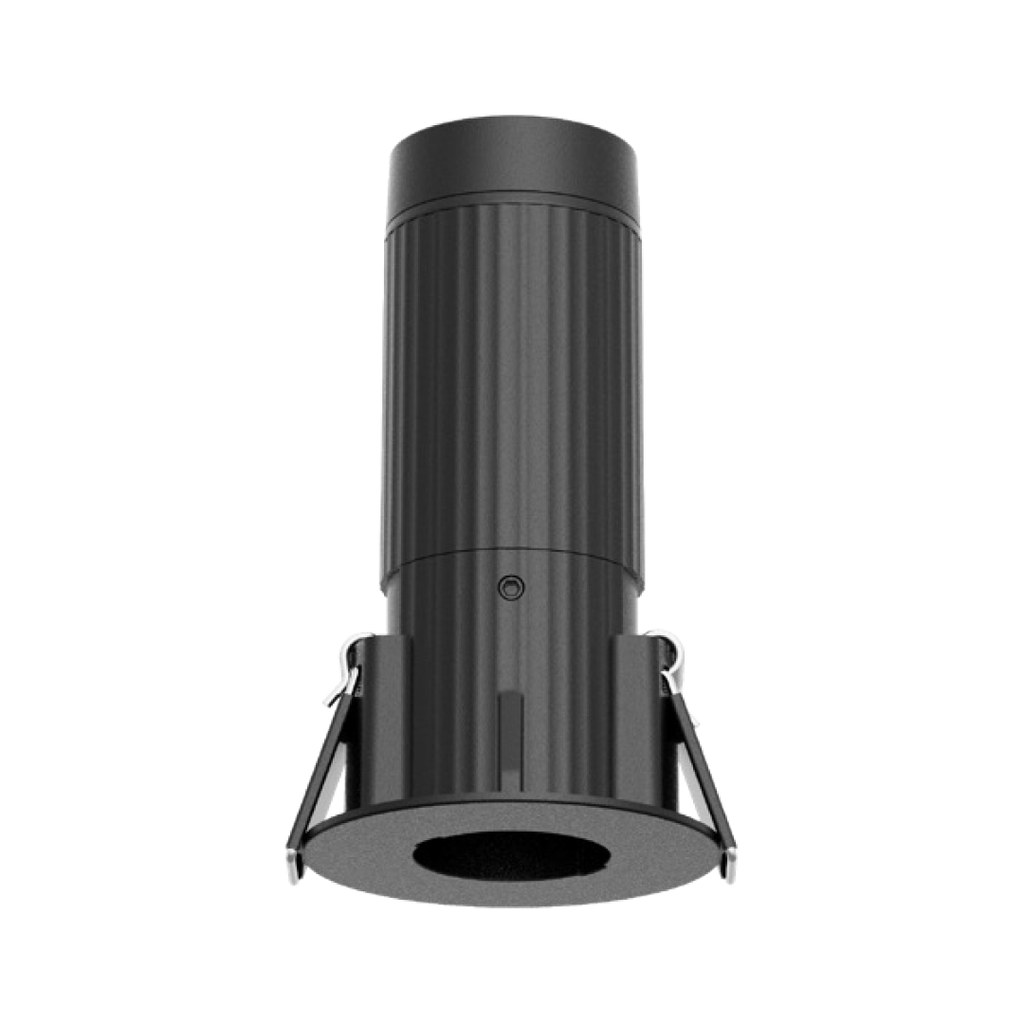

PONTO Base
ACU BS 240000R-B/
150W/
Recessed Module Base compatible with all PONTO Modules, 72W, φ55mm open size, DALI Compatible , Cover and wire connection accessories attached, Black
Datasheet
| Wattage | 150 W |
|---|---|
| IP Rate | 20 |
| Rated life - Hours | 30000-50000H |
| Cutting section | Cut Out: φ55mm |
| Finish Color | Black |
| Materials | PC+ADC12 |
| Installation | Recessed |
| Driver Type | External Driver |
| Input Voltage | 24V DC (Via the External Driver) |

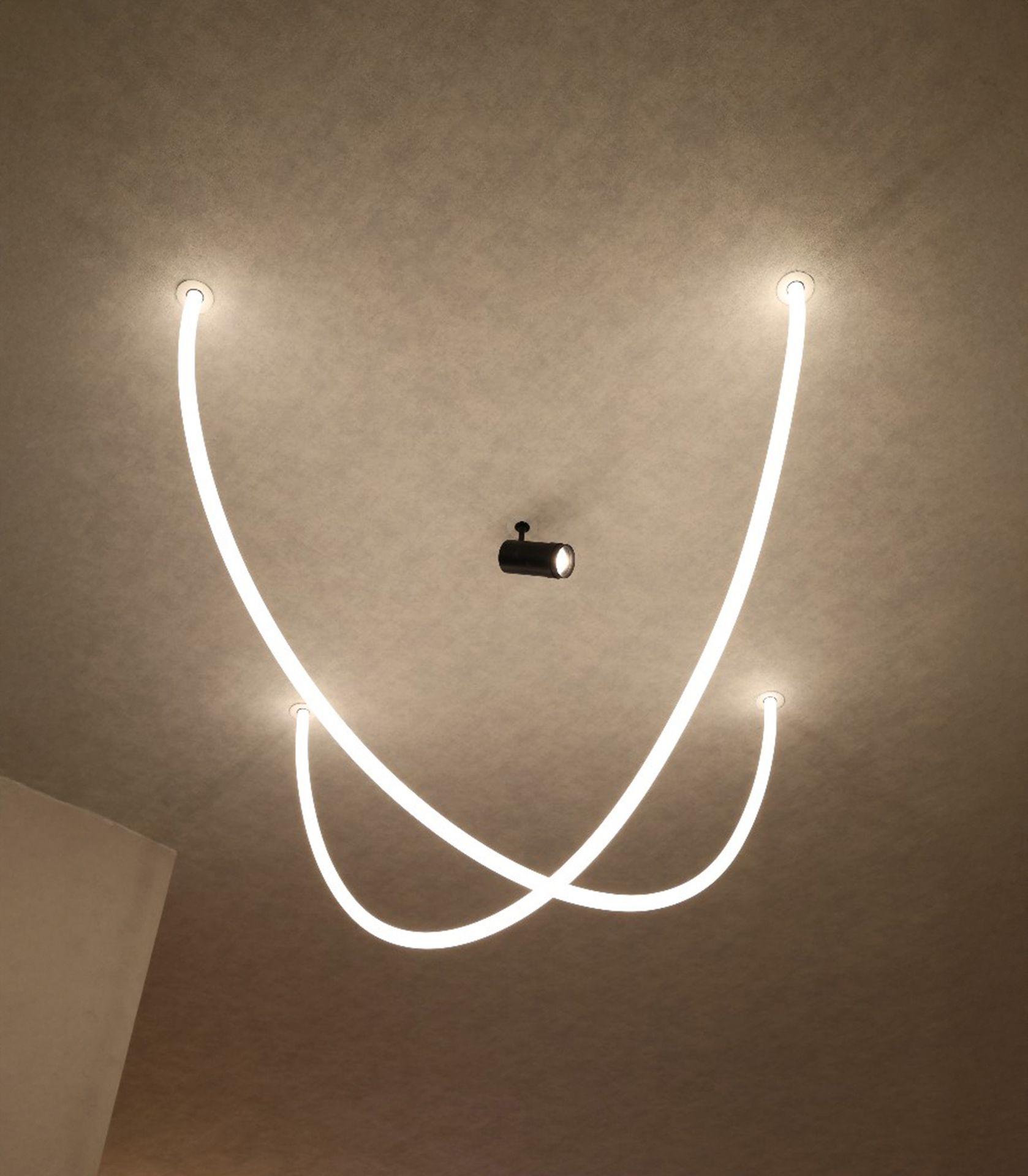

Application Photo
Dimension Diagram
5 Years Warranty
Your product has a warranty that protects against defects in the material and the finishing of the product in accordance with its maintenance and usage instruction.
Damage caused by misuse
Damages cause by misuse or abusive use, negligence, accidents, commercial use and/or changes to the product made by the end consumer is explicitly excluded from this warranty.
Application Photo
Dimension Diagram
