Daylight Control
Where light, motion, and material converge.
Daylight Control
Curtain systems engineered for spaces that demand both performance and beauty.
Acumen Light's Curtain Systems are engineered for spaces that demand both performance and beauty.
This catalog presents our two core pillars: intelligent motorized systems, and seamless control integration.
Choose a pillar above to explore it.

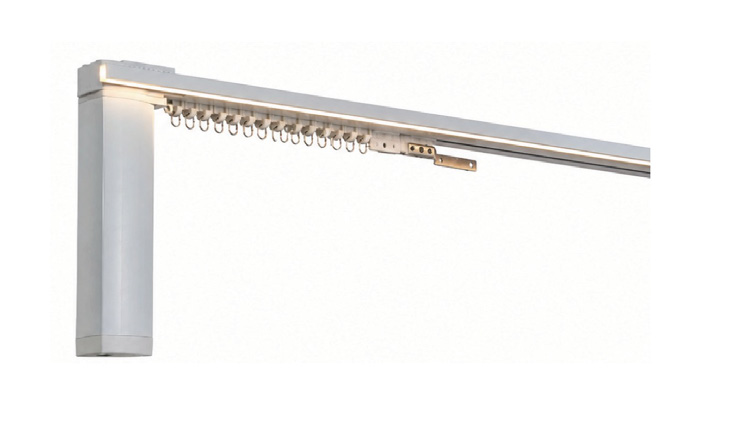

Motorized Curtains
Acumen Light's motorized curtains system redefine the boundary between architecture and atmosphere — where precision engineering meets refined aesthetics in every draw.
Motors Selection
Whisper-quiet synchronous motors.
Acumen Light currently offers a carefully selected, whisper-quiet synchronous motor, designed to deliver smooth, reliable, and discreet performance for refined residential applications. Its quiet operation and consistent movement ensure maximum comfort while preserving the calm and sophisticated atmosphere of the space.

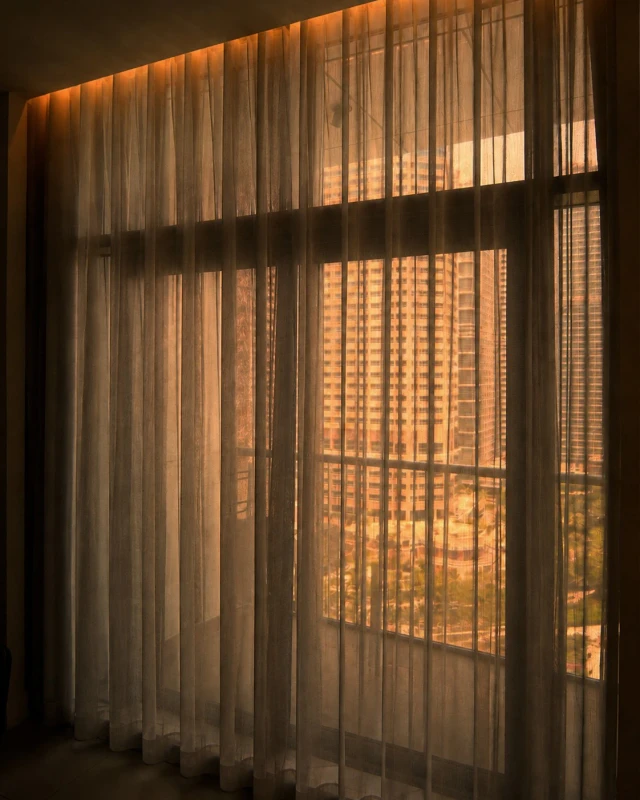

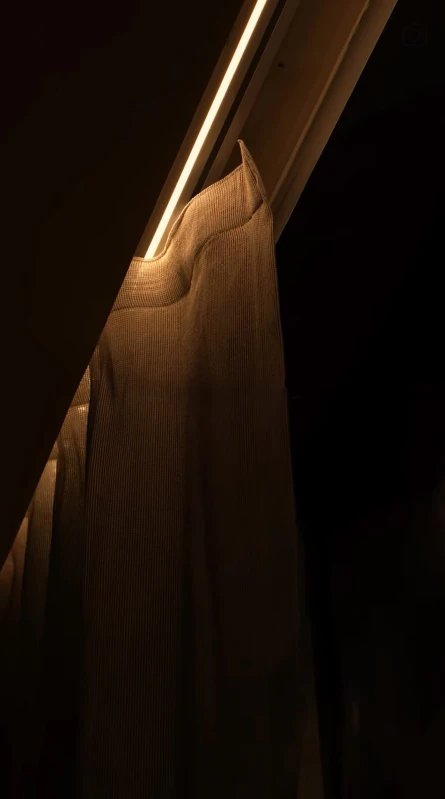

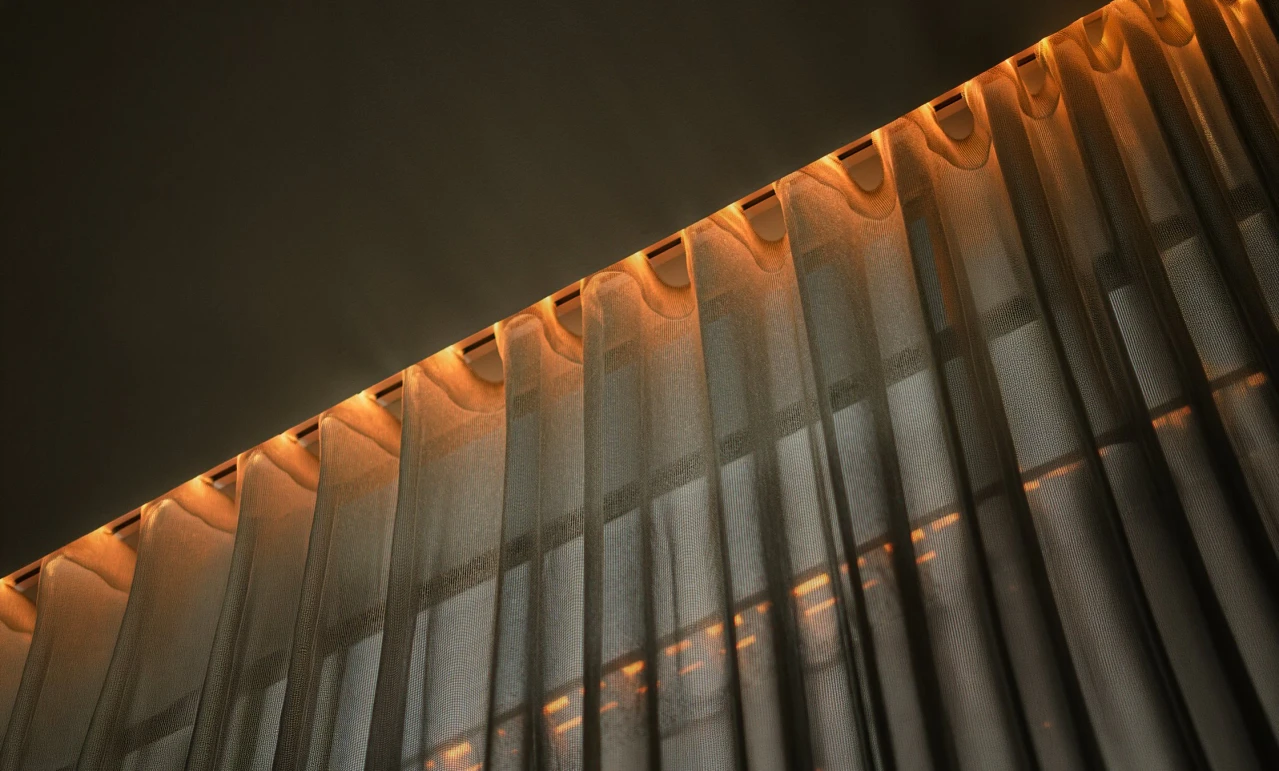

Rails with Integrated Light
The curtain track becomes the light.
Our curtain rails embed a continuous LED light channel directly within the track profile, casting a seamless wash of ambient light along the curtain — eliminating the need for a separate cornice lighting solution. Engineered in Premium Extruded Aluminum in bespoke lengths, the illuminated rail system transforms the curtain track itself into a deliberate architectural lighting element.

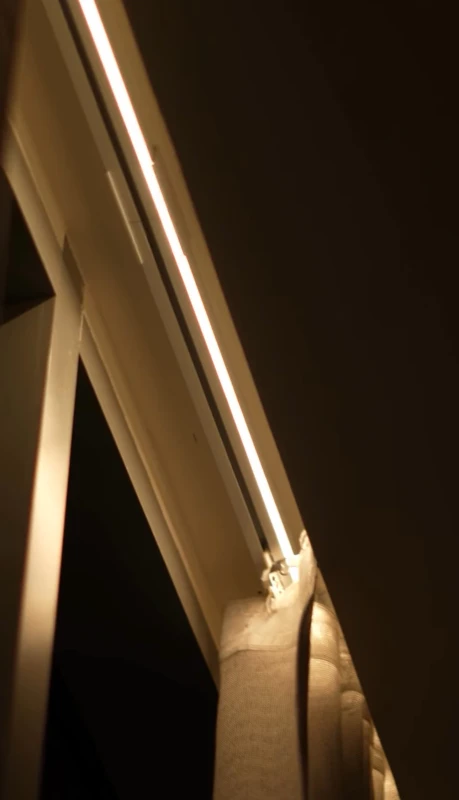

Integrated LED Strip Lighting
One architectural element. Continuous warm or tunable light.
Every rail profile accepts a dedicated LED strip channel, delivering a continuous line of warm or tunable white light along the curtain track. Creates dramatic cove lighting and accentuates fabric or mesh texture from a single architectural element.
Rail Profiles
Three aluminum rail profiles are available to suit different architectural and lighting requirements: an integrated downlight profile, a face-lighting profile, and a non-illuminated profile. All profiles are motor-ready and engineered for seamless integration with the curtain system.
ACU CT-SM-1m-DL
Curtain Track with Integrated LED
Downlight
Surface-mounted curtain track (for motorized installation) with integrated LED — downlight.

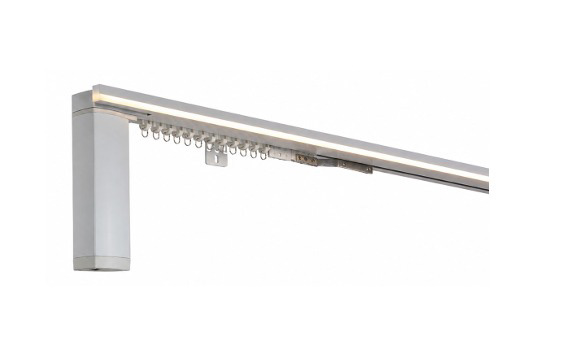

ACU CT-SM-1m-FL
Curtain Track with Integrated LED
Facelight
Surface-mounted curtain track (for motorized installation) with integrated LED — facelight.

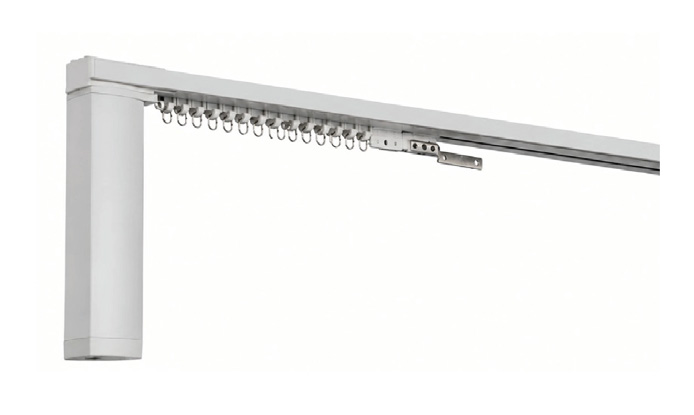

ACU CT-SM-1m
Curtain Track
Non-Illuminated
Surface-mounted curtain track (for motorized installation).
Control Systems
Intelligence is built in — Acumen Light curtain systems are designed from the ground up for seamless integration with today's most advanced lighting and building control ecosystems.
Casambi Integrated Control
Native Casambi. One app for curtain and light.
Our curtain systems integrate natively with the Casambi wireless control platform, enabling intuitive app-based operation, scene programming, and synchronized control of both curtain movement and integrated rail lighting from a single interface.
Third-Party Smart Control
Flexible control for every project.
The Motorized Curtain Track supports a wide range of control and smart home integration options, providing flexible solutions for different project requirements.
Control & Integration Options
The Motorized Curtain Track supports remote, wired, voice and building-automation control.
Wireless
Remote Control
Wireless RF control for convenient and independent operation.
Wired
Push Button Switch
Wired wall-switch control for seamless integration with standard electrical installations.
Voice
Amazon Alexa
Voice-control compatibility for integration with smart home and residential automation systems.
Building Automation
KNX
Integration with KNX-based building automation system for centralized and intelligent control.
Casambi App

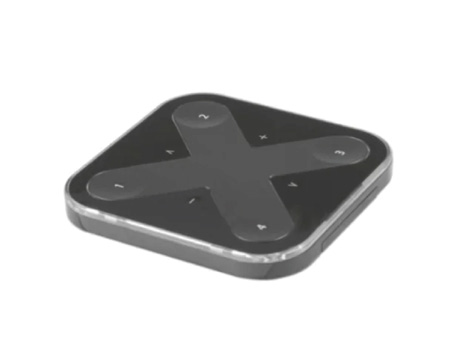

Xpress Switch
Remote Control
Push Button Switch

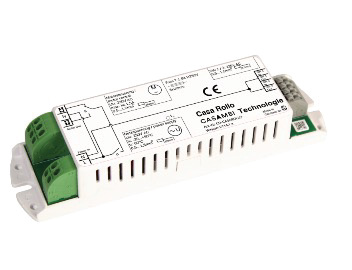

Control Module
Curtain Motors
| Specification | RF Remote Motor | Smart Motor |
|---|---|---|
| Power Supply | 220V AC | 220V AC |
| Noise Level | 60–70 dB | 60–70 dB |
| Max Load | 35 kg | 35 kg |
| Speed Control | 14 cm/s | 14 cm/s |
| Communication | RF 433 / 868 MHz | Dry Contact, Bluetooth |
| Control Interface | Remote control | Wall switch, App, Voice |
| 3rd-Party Integration | Dry contact only | Casambi, KNX |
| Commissioning | Manual button pairing | App-based, cloud optional |
| IP Rating | IP20 | IP20 |
