Ray
ACU 232003-3K15-WB/
1x12W/
3000K

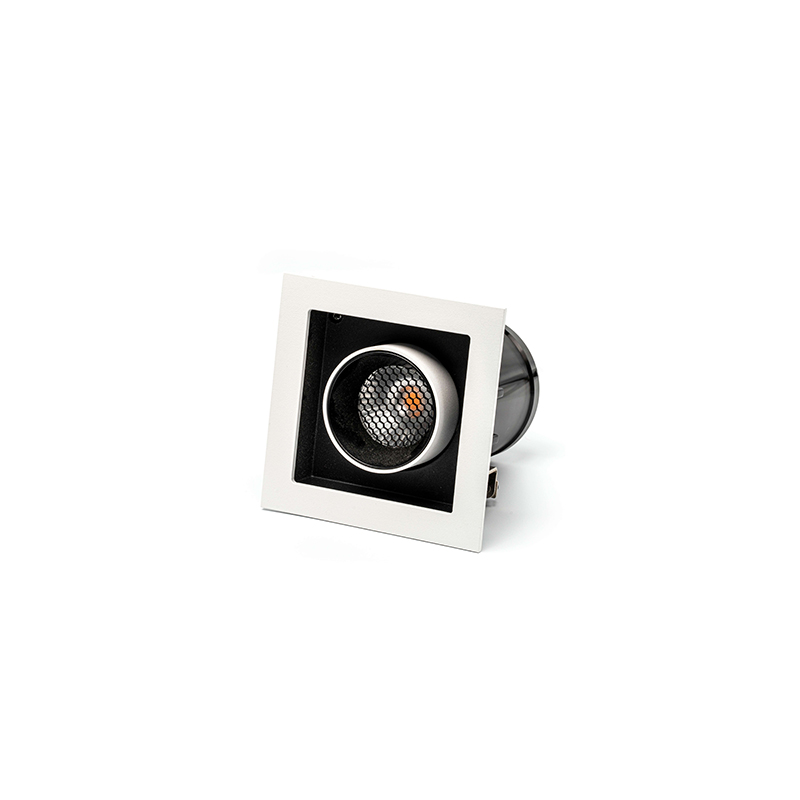

Recessed Adjustable light, LED 1x12W, 3000K, 15° Beam Angle, 800lm, IP20, White-black
Datasheet
Source type | LED COB |
---|---|
Wattage | 1x12 W |
CCT | 3000 K |
Beam Angle | 15 ° |
Lumen Output | 800 |
CRI | ≥90 |
IP Rate | 20 |
IK Rate | N/A |
Rated life - Hours | 30000-50000H |
Cutting section | Cut out: 100×100mm |
Finish Color | White-Black |
Materials | Die Casting Aluminium |
Installation | Recessed |
Driver Type | External Driver |
Input Voltage | 36V DC |
5 Years Warranty
Your product has a warranty that protects against defects in the material and the finishing of the product in accordance with its maintenance and usage instruction.
Damage caused by misuse
Damages cause by misuse or abusive use, negligence, accidents, commercial use and/or changes to the product made by the end consumer is explicitly excluded from this warranty.
Dimension Diagram
