Indoor Linear
ACU IL 240203SM-3K-B-D/
68W/
3000K

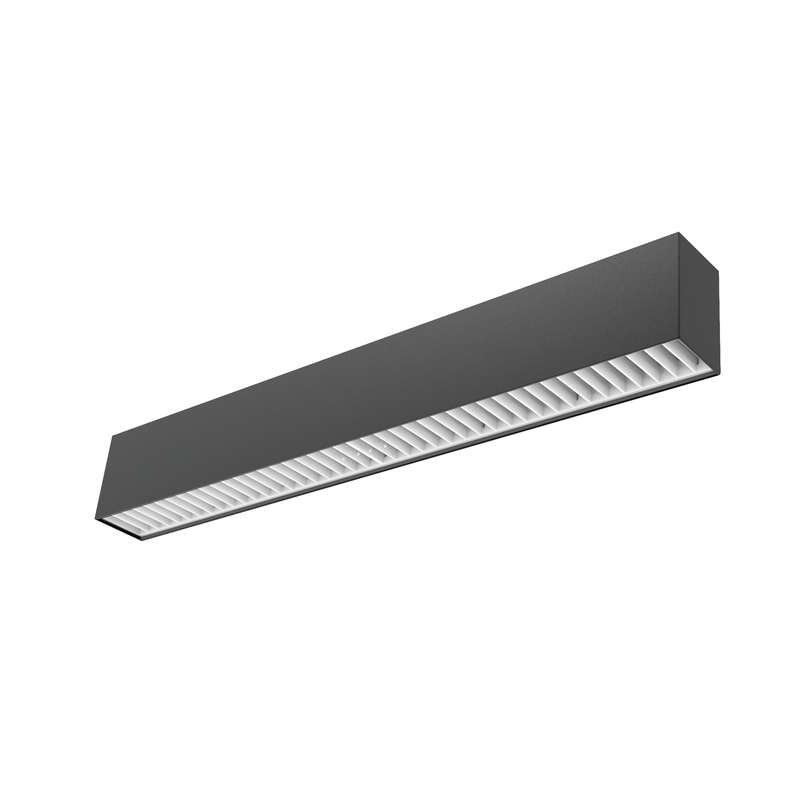

Surface Mounted Indoor Linear With Louver Diffuser, 68W, 3000K, 220V AC, IP20, L 2400 x W 56 x H85 mm, Black, DALI Dimmable
Datasheet
| Source type | LED SMD |
|---|---|
| Wattage | 68 W |
| CCT | 3000 K |
| Beam Angle | 72 ° |
| Lumen Output | 3550 |
| CRI | ≥90 |
| IP Rate | 20 |
| IK Rate | N/A |
| Rated life - Hours | 30000-50000H |
| Cutting section | N/A |
| Finish Color | Black |
| Materials | Aluminum |
| Installation | Surface Mounted / Suspended |
| Notes | DALI Dimmable / With Louver Diffuser |
| Driver Type | Built In DALI Driver |
| Input Voltage | 220V AC |
Application Photo
Dimension Diagram
5 Years Warranty
Your product has a warranty that protects against defects in the material and the finishing of the product in accordance with its maintenance and usage instruction.
Damage caused by misuse
Damages cause by misuse or abusive use, negligence, accidents, commercial use and/or changes to the product made by the end consumer is explicitly excluded from this warranty.
Application Photo
Dimension Diagram
