PONTO LD
ACU PTL 242101-3K-B/
48W/
3000K

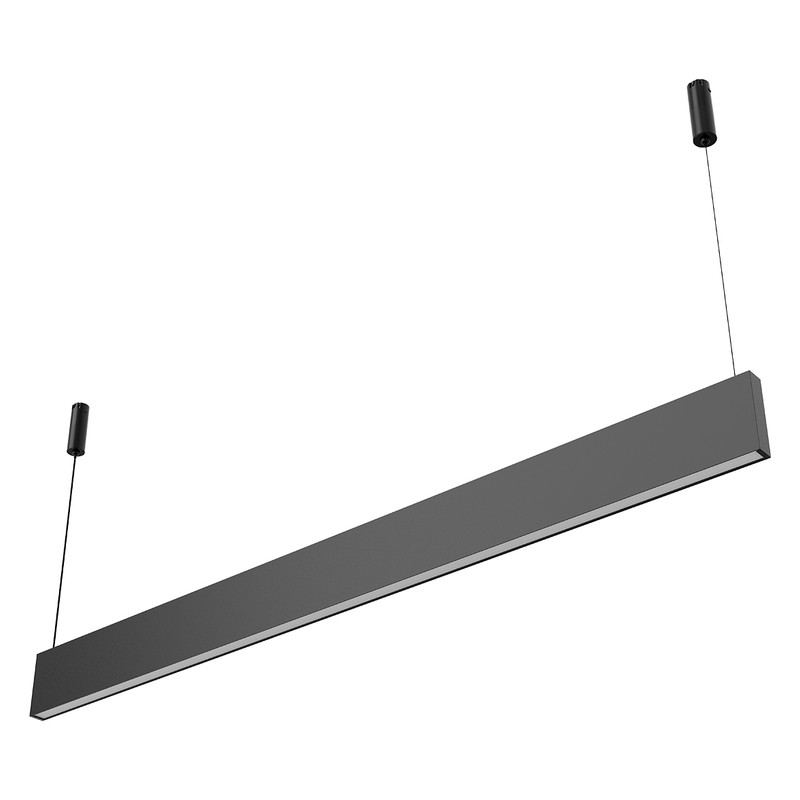

Up -Down PONTO Linear Light with Normal Diffuser, 48W, 3000K 24V DC, 100 Beam Angle, IP20, L- 1208mm, 2 Bases
Datasheet
| Source type | LED SMD |
|---|---|
| Wattage | 48 W |
| CCT | 3000 K |
| Beam Angle | Up:100 , Down: 100 ° |
| Lumen Output | 2688 |
| CRI | ≥90 |
| IP Rate | 20 |
| IK Rate | N/A |
| Rated life - Hours | 30000-50000H |
| Cutting section | N/A |
| Finish Color | Black |
| Materials | Aluminum |
| Installation | On Recessed Base |
| Notes | L- 1208mm |
| Driver Type | External Driver |
| Input Voltage | 24V DC |
5 Years Warranty
Your product has a warranty that protects against defects in the material and the finishing of the product in accordance with its maintenance and usage instruction.
Damage caused by misuse
Damages cause by misuse or abusive use, negligence, accidents, commercial use and/or changes to the product made by the end consumer is explicitly excluded from this warranty.
Dimension Diagram
