Auriga
ACU ST 17047-27K/
4.8 W/mW/
2700K

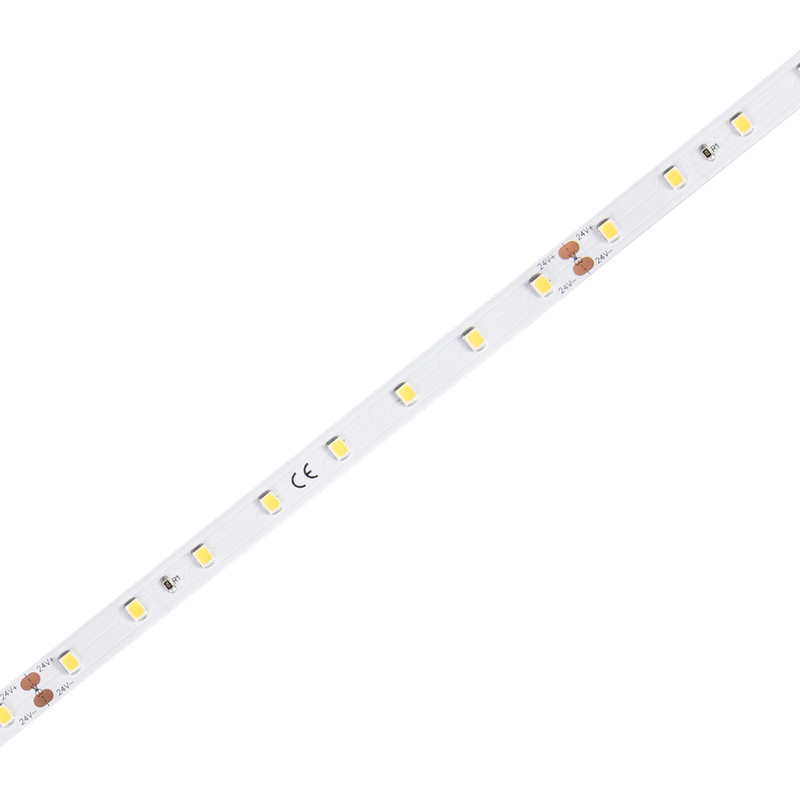

LED SMD Strip Light, 4.8W, 2700K, 24V, IP20, 1 roll (5m)
Datasheet
| Source type | LED SMD |
|---|---|
| Wattage | 4.8 W/m W |
| CCT | 2700 K |
| Beam Angle | 120 ° |
| Lumen Output | 510 Lm/m |
| CRI | ≥90 |
| IP Rate | 20 |
| Rated life - Hours | 30000-50000H |
| Cutting section | Cutting Unit: 125mm / 8 Leds |
| Materials | FPC (Flexible Printed Circuit) |
| Installation | Strip Light Accessories / Profile & Clips / |
| Notes | Max.Length: 5000mm |
| Driver Type | External Driver (Constant Voltage) |
| Input Voltage | 24V DC (Via the External Driver) |
Application Photo
Dimension Diagram
5 Years Warranty
Your product has a warranty that protects against defects in the material and the finishing of the product in accordance with its maintenance and usage instruction.
Damage caused by misuse
Damages cause by misuse or abusive use, negligence, accidents, commercial use and/or changes to the product made by the end consumer is explicitly excluded from this warranty.
Application Photo
Dimension Diagram
