Neon Flex
ACU ST 202205-27K/
5.8 W/mW/
2700K

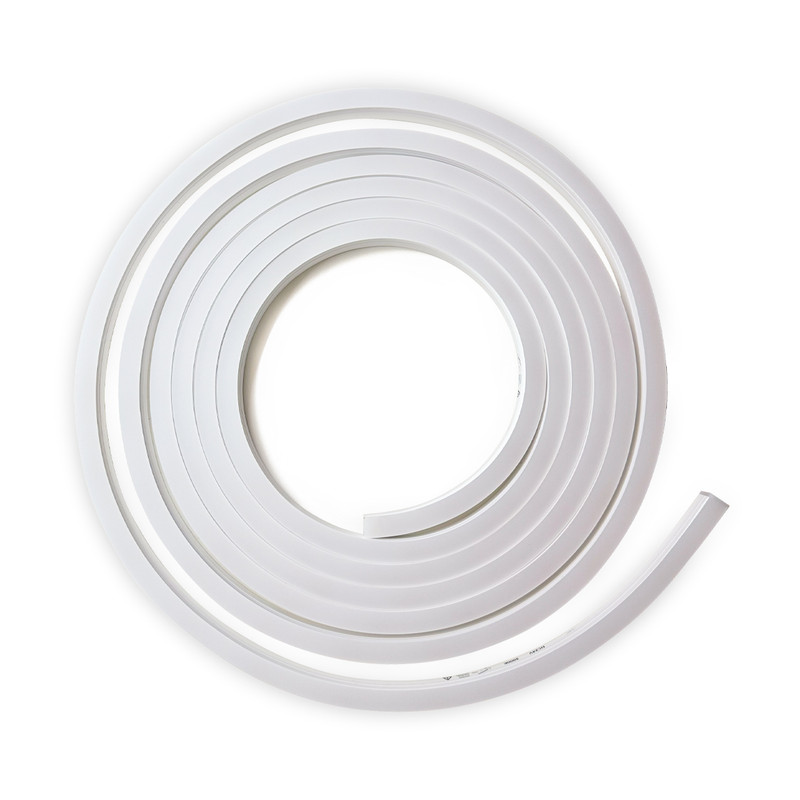

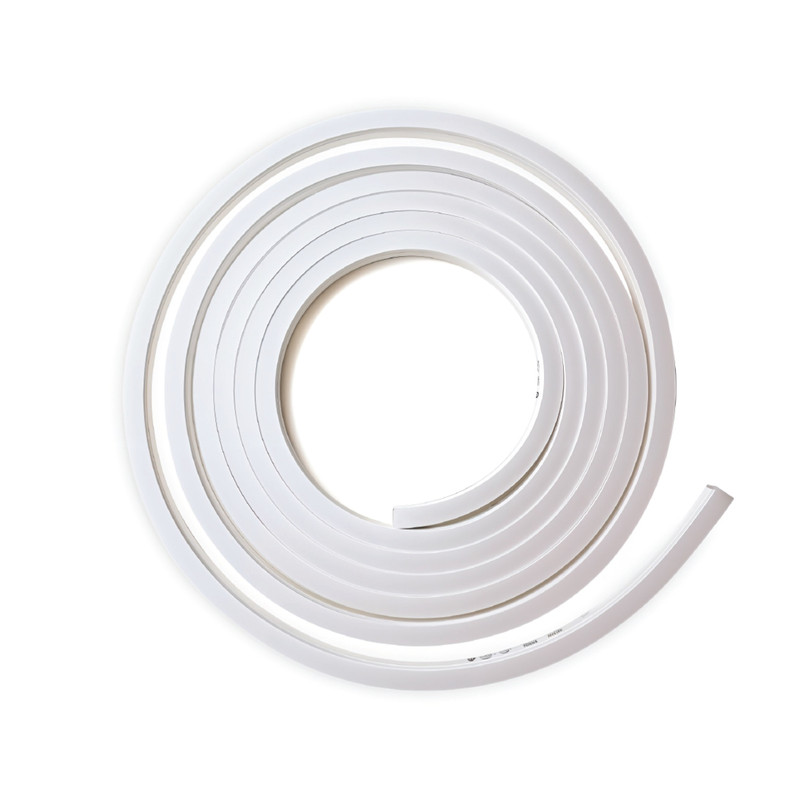

LED SMD, Neon Strip Light, LED 5.8W, 2700K, 48V, IP67, Side Bend, 1meter.
Datasheet
| Source type | LED SMD |
|---|---|
| Wattage | 5.8 W/m W |
| CCT | 2700 K |
| Lumen Output | 220 Lm/m |
| CRI | ≥90 |
| IP Rate | 67 |
| IK Rate | IK08 |
| Rated life - Hours | 36000H |
| Cutting section | 100mm / 12 LEDs |
| Finish Color | White |
| Materials | Neon Flex |
| Installation | Neon Flex Accessories / Profile & Clips / |
| Notes | Side Bend Direction / Max Length 50m/Roll |
| Driver Type | External Driver |
| Input Voltage | 48V DC |
Application Photo
Dimension Diagram
5 Years Warranty
Your product has a warranty that protects against defects in the material and the finishing of the product in accordance with its maintenance and usage instruction.
Damage caused by misuse
Damages cause by misuse or abusive use, negligence, accidents, commercial use and/or changes to the product made by the end consumer is explicitly excluded from this warranty.
Application Photo
Dimension Diagram
