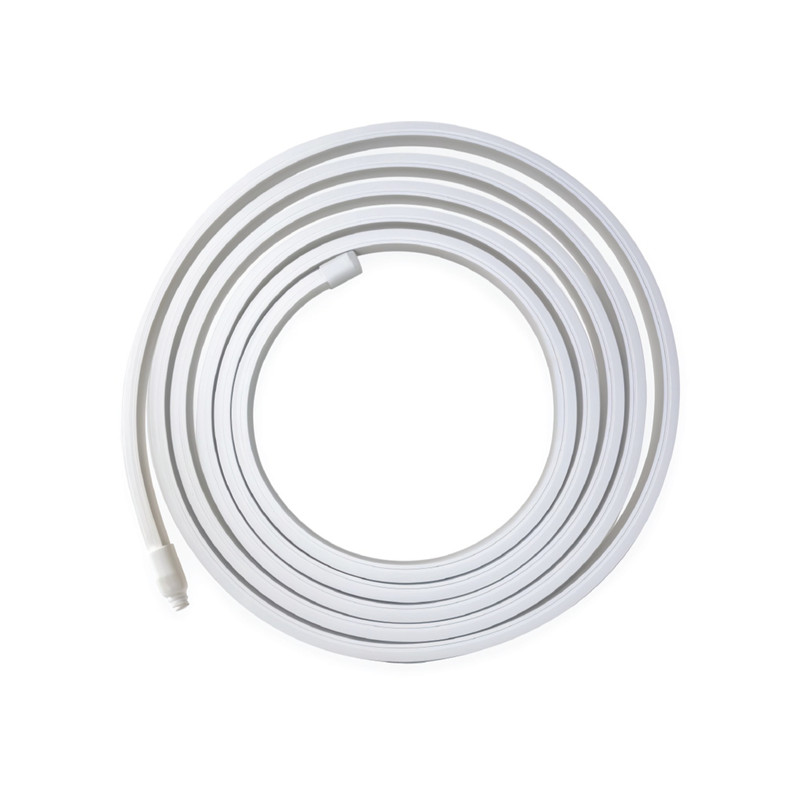

Neon Flex
ACU ST 202305-3K-20M/
10.6 W/mW/
3000K
LED SMD, Neon Strip Light, LED 10.6W, 3000K, 48V, IP67, Top Bend, 20m/roll
Datasheet
Source type | LED SMD |
---|---|
Wattage | 10.6 W/m W |
CCT | 3000 K |
Beam Angle | N/A ° |
Lumen Output | 650 Lm/m |
CRI | ≥90 |
IP Rate | 67 |
IK Rate | IK08 |
Rated life - Hours | 36000H |
Cutting section | 100mm / 12 LEDs |
Finish Color | White |
Materials | Neon Flex |
Installation | Neon Flex Accessories / Profile & Clips / |
Notes | Top Bend Direction |
Driver Type | External Driver (Constant Voltage) |
Input Voltage | 48V DC |
5 Years Warranty
Your product has a warranty that protects against defects in the material and the finishing of the product in accordance with its maintenance and usage instruction.
Damage caused by misuse
Damages cause by misuse or abusive use, negligence, accidents, commercial use and/or changes to the product made by the end consumer is explicitly excluded from this warranty.
Dimension Diagram
